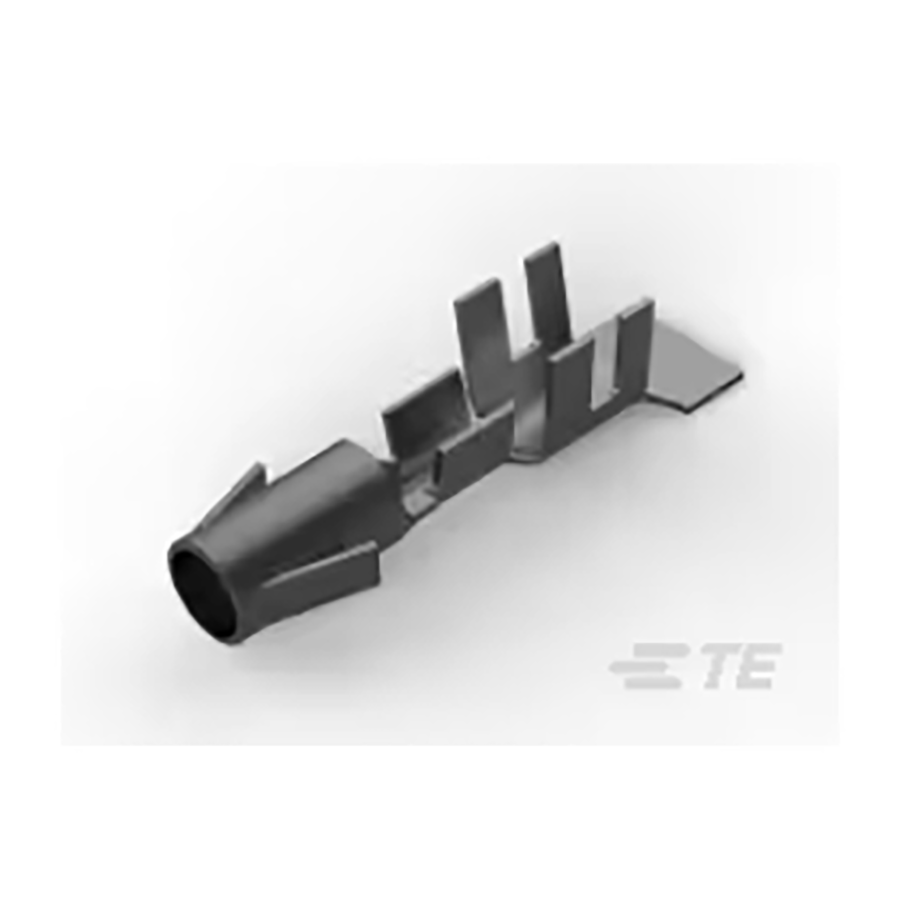

61626-1
Manufacturer:
TE Connectivity
Mfr.Part #:
61626-1
Datasheet:
Description:
IC and Component Sockets Cable Socket Pitch:4.19 mm
| Parameter | Value |
|---|---|
| Length | 20.19 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.05 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 5.46 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.19 mm |
| Number of Terminals | 1 |
| Current Rating | 28 A |
| Max Current Rating | 17 A |
| Flammability Rating | UL94V-2 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG to 14 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Resistance | 4 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 17 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 14 AWG |
| Insulation Diameter | 4.57 mm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 15450
Distributors
pcbx
pcbxUnit Price$0.36480
Ext.Price$0.36480
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36480 | $0.36480 |
| 10 | $0.18240 | $1.82400 |
| 50 | $0.14031 | $7.01550 |
| 100 | $0.10793 | $10.79300 |
| 500 | $0.08302 | $41.51000 |
| 1000 | $0.06386 | $63.86000 |
| 3000 | $0.06291 | $188.73000 |
| 5000 | $0.06198 | $309.90000 |
| 10000 | $0.05634 | $563.40000 |
